Indoor sport lighting

HALLNAIT ONE - HN-144LED

High-Performance Single-Cassette Lighting.

Product overview

The HALLNAIT ONE - HN-144LED is a specialized modular LED floodlighting system specifically engineered for the demanding requirements of indoor sports environments. Featuring a high-precision single-cassette design with 144 high-power LEDs, this luminaire delivers superior light quality and uniformity, ensuring maximum safety for athletes. Designed as a sustainable high-output solution, it combines superior energy efficiency with a robust housing that virtually eliminates the need for ongoing maintenance.

Techincal light

Application & Performance: Optimized for school gymnasiums, training centers, and professional indoor courts at mounting heights of 6–10 meters. The HN-144LED provides exceptional visual clarity and glare control, allowing athletes to perform at their peak while maintaining an energy-efficient footprint.

Standards Compliance: This luminaire is fully certified for ball-impact resistance according to DIN 18032-3. It meets EN 12193 sports lighting standards and features advanced thermal management and IP66 protection for long-term operational reliability.

Specifications

Performance data

System flux:	33.094 lm - 83.073 lm
System power:	200W - 500W
CCT:	4000K - 6000K
CRI:	70-90
Classification:	IEC protection class I
Surge protection:	10 kV
Smart lighting:	On request
On request:	custom RAL
Overtime performance:	L95B10 100.000 hours at Ta=25°C
Certification:	CE, ECEC, ENEC PLUS (pending)

Installation

Mounting device:	Stell U-bracket
Fixation type:	Yoke mount
Tilt angle:	360°
Connecting:	5-pole connector

Features

Net weight (Excluding driver):	12,56 kg
Gross weight (Including driver):	15,64 kg
Pre-wiring:	on demand

Materials

Housing material:	Die-cast aluminum, Stainless steel
Finish:	RAL9007 (default)
Optic material:	PMMA HT (High Temperature)
Optical cover:	OPTIWHITE 5 mm glass
Cable gland:	stainless steel with pressure equalization membrane
Fixation bolts:	stainless steel A4

Measurements

Commonly used optics

HB100

The HB100 is a professional-grade multi-lens array for high-bay lighting, delivering a 100° extra-wide beam and uniform light distribution across expansive industrial environments.

HB50

The HB50 is a professional-grade multi-lens array for high-bay lighting, delivering a concentrated 50° wide beam designed to minimise light spill and maximise intensity in high-ceiling industrial environments. This narrower distribution ensures high lux levels on the working plane even from extreme mounting heights.

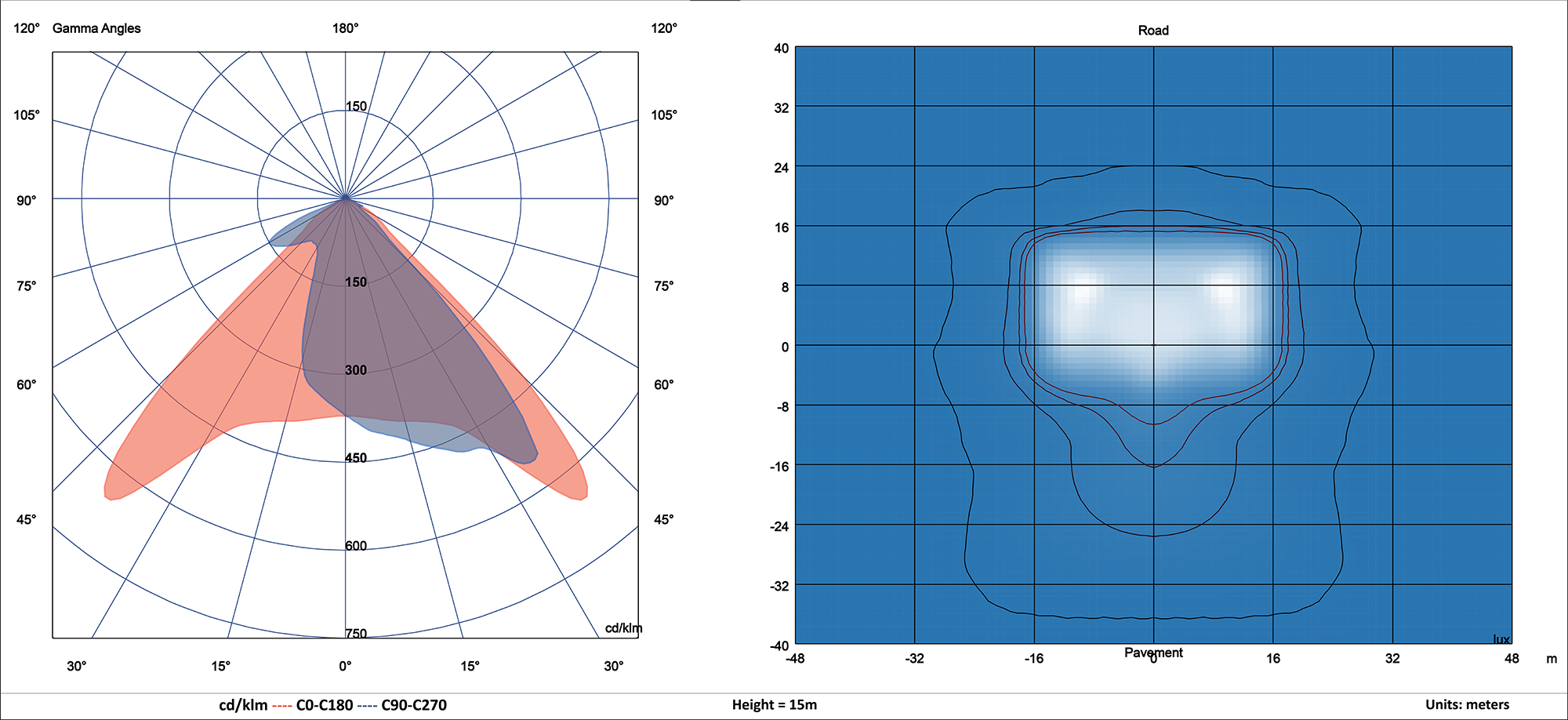

SWF

The SWF is a high-performance, high-temperature asymmetric optic designed for sports and area lighting, delivering a wide forward-throw beam with an optimised cut-off to minimise glare. Specifically engineered for smaller athletic fields and outdoor spaces, it ensures broad lateral light distribution and exceptional uniformity from high mounting positions.
