NAIT PLUS series

MT-60 LED

A step up in size and performance for motorways and bigger roads

Product overview

Reaching up to almost 18.000 lumen with 60 pieces of high power LEDs, this luminaire takes the lighting up to another level. It has an entry level lumen package that can comply with demands for more complexed and traffic heavy roads and conflict areas that demand higher level of illumination.
Luminaire has been developed in conjunction with the latest controlling technology, which can adjust the luminous output according to the preset schedule, which has been synced with average annual daily traffic during the dark part of the day. This feature is a great additional energy saving potential and at the same a great improvement of life quality at night.

Property features

Modern design with an emphasis on optimizing aluminum die-casting. The luminaire edges are rounded for better color durability. All screws have been cleverly positioned outside the IP66 area.

Typical project case

Up to three lanes

Installation height 10 - 14m

Motorized traffic

Moderate to high speed

Various column configuration

With pedestrians

Specifications

Performance data

System flux:	12.968 lm - 18.268 lm
System power:	76 W - 110 W
CCT:	2700 K, 3000 K, 4000 K
CRI:	≥70, ≥80
Classification:	IEC protection class I/II, IP66, IK10
Surge protection:	10 kV ((L/N-ground), 6 kV (L-N)), 15kV, 20kV
Smart lighting:	Virtual midnight, AstroDIM, StepDIM, DALI
On request:	4-pin socket (ZHAGA book 18), CLO
Overtime performance:	L80B10 100.000 hours at Ta=25°C
Certification:	CE, ENEC PLUS

Installation

Mounting device:	For pole spigot from ⲫ42 to ⲫ60 mm
Fixation type:	post top / side entry
Tilt angle:	0°/ ±5/ ±10 /±15
Connecting:	IP66 fast connector (2/3 or 5 pole)

Features

Net weight:	9,25 kg
Pre-wiring:	preinstalled with fast connector - Default: 3-pin fast connector IP66 on 0,2m 3G1 cable - Optional: custom cable length with or without connector

Materials

Housing material:	High pressure die-cast aluminum
Finish:	Polyester powder-coated paint in RAL 9007
Optic material:	PMMA High transparent
Optical cover:	OPTIWHITE 5 mm tempered glass
Cable gland:	stainless steel with pressure equalization membrane
Fixation bolts:	stainless steel grade A4

Measurements

Commonly used optics

CO

Beam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height.

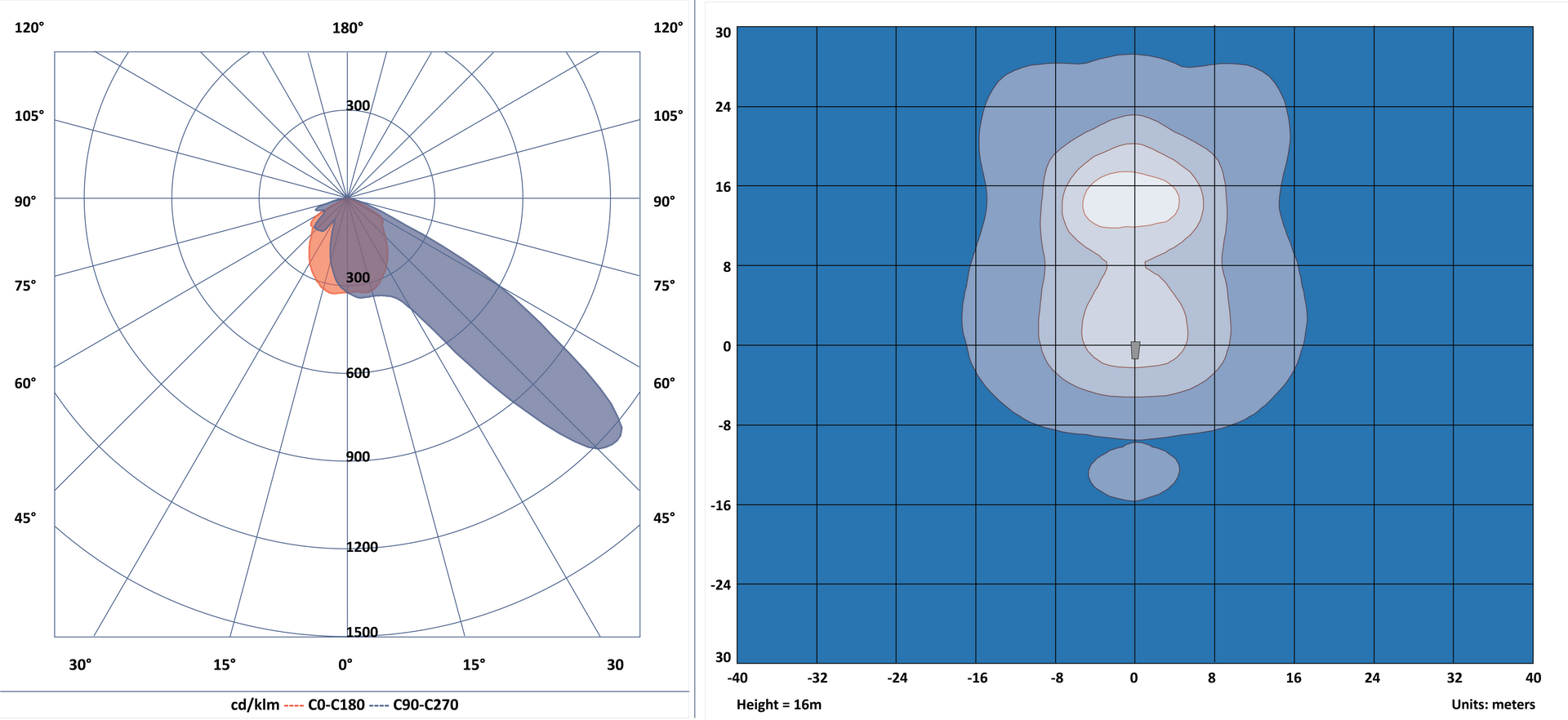

FF

Narrow forward throw beam for area lighting. Excellent for lighting stadiums and airports from high masts.

H3

Excellent longitudinal luminance uniformity for EN13201 M-class where road width is ≥ the pole height. Usually to illuminate up to three lanes in front of the pole.

H4

Excellent longitudinal luminance uniformity for EN13201 M-class where road width is wider than the pole height. Usually to illuminate up to four lanes in front of the pole.
