ZONENAIT ONE ZN-144LED
The ZN-144LED features a single modular cassette that provides a high-efficiency, powerful lighting solution ideal for targeted illumination tasks. Delivering up to 500W and approximately 67,000 lumens, it is designed for smaller operational sections, security perimeters, and specialised task areas where precision, reliability, and minimal maintenance are essential. The ONE model offers superior efficiency and instant full output, which is vital for immediate operational visibility. Its robust, low-profile design enables flexible mounting across diverse industrial and commercial environments without obstructing existing infrastructure. The advanced internal thermal management system ensures the light source maintains peak intensity and longevity, even in challenging ambient conditions.
Application & Performance: Optimized for school gymnasiums, training centers, and professional indoor courts at mounting heights of 6–10 meters. The HN-144LED provides exceptional visual clarity and glare control, allowing athletes to perform at their peak while maintaining an energy-efficient footprint.
Standards Compliance: This luminaire is fully certified for ball-impact resistance according to DIN 18032-3. It meets EN 12193 sports lighting standards and features advanced thermal management and IP66 protection for long-term operational reliability.
| System flux: | 30.299 -77.379 lm |
| System power: | 200W-500W |
| CCT: | 4000K - 6000K |
| CRI: | 70-90 |
| Classification: | IEC protection class I |
| Surge protection: | 10 kV |
| Smart lighting: | On request |
| On request: | custom RAL |
| Overtime performance: | L95B10 100.000 hours at Ta=25°C |
| Certification: | CE, ECEC, ENEC PLUS (pending) |
| Mounting device: | Stell U-bracket |
| Fixation type: | Yoke mount |
| Tilt angle: | 360° |
| Connecting: | 5-pole connector |
| Net weight (Excluding drivers): | 19,44 kg |
| Gross weight (Including drivers): | 22,5 kg |
| Pre-wiring: | On demand |
| Housing material: | Die-cast aluminum, Stainless steel |
| Finish: | RAL9007 (default) |
| Optic material: | PMMA HT (High Temperature) |
| Optical cover: | OPTIWHITE 5 mm glass |
| Cable gland: | stainless steel with pressure equalization membrane |
| Fixation bolts: | stainless steel A4 |

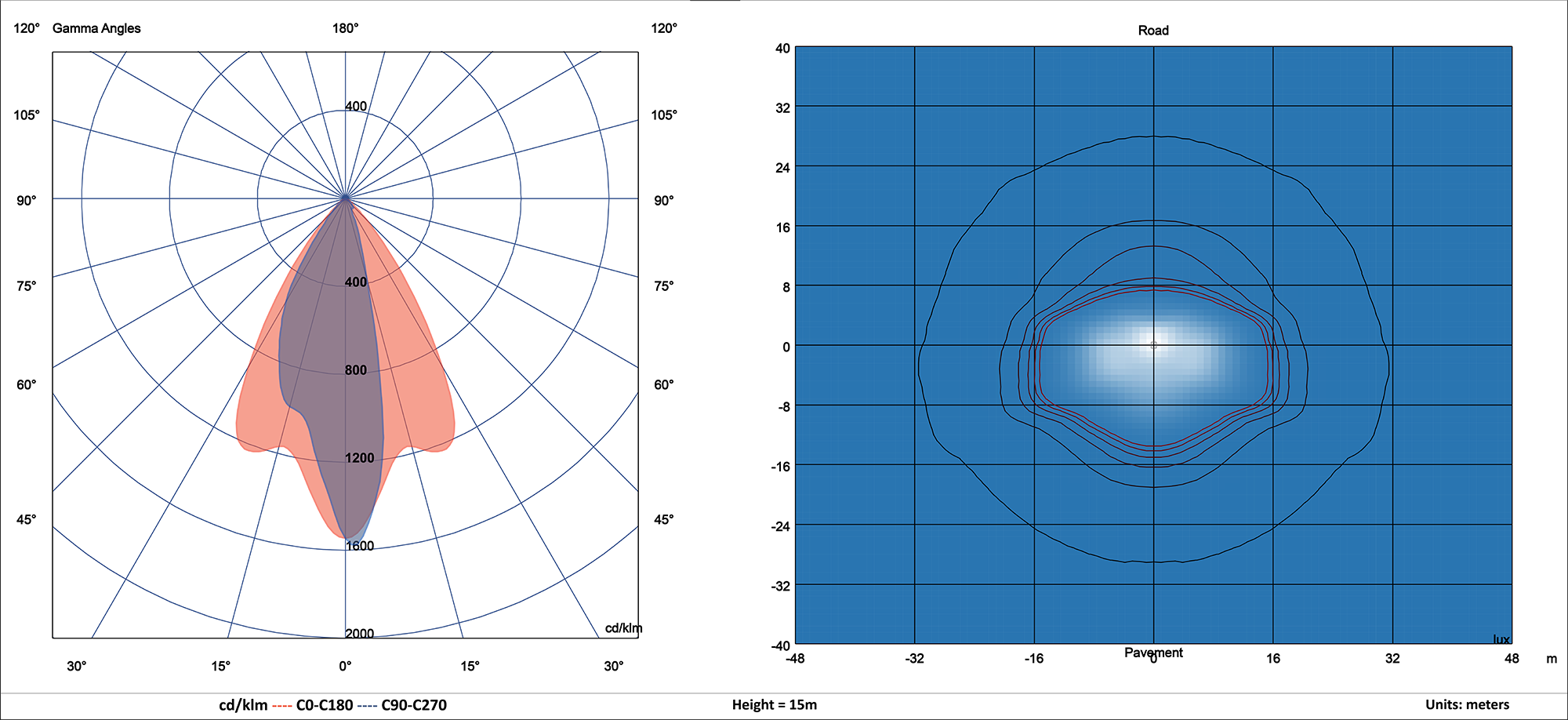

S6
The S6 is a high-performance, high-temperature optic featuring a slightly asymmetric ~60° spot beam designed to minimise spill light and focus intensity precisely where needed. Engineered for sports and area lighting, it delivers exceptional beam control and high lux levels for focused illumination in demanding outdoor environments.
SFH
The SFH is a high-performance, high-temperature asymmetric optic designed for sports and area lighting, featuring a narrow forward-throw beam and an optimised cut-off to eliminate glare. Engineered for high-mast applications, it delivers precise light projection and superior uniformity across large athletic fields and industrial zones.
SWF
The SWF is a high-performance, high-temperature asymmetric optic designed for sports and area lighting, delivering a wide forward-throw beam with an optimised cut-off to minimise glare. Specifically engineered for smaller athletic fields and outdoor spaces, it ensures broad lateral light distribution and exceptional uniformity from high mounting positions.
